AMR Robot Top Modules

Roller Modules

When mounted to the top of AMR robots, roller modules can provide your operation with flexible conveyor solutions. Allowing you to automate loading and unloading operations, and carry out scheduled pick-up and delivery tasks, roller modules are powerful additions to your fleet.

With a ROEQ roller module attached, MiR robots can autonomously transport products, materials, supplies, parts or goods in manufacturing facilities, institutions and warehouses.

ROEQ Top Modules come with three built-in sensors:
• Optical sensors to identify the stationary conveyor station, ensuring precise alignment
• Front payload sensors to ensure the correct receiving of packages from a station
• Rear payload sensors to ensure optimal placement of a package on the top roller

ROEQ Roller Modules Available:

• TR125 Manual 250
• TR125 Auto 250
• TR600 & TR1150
• TR1000 Auto

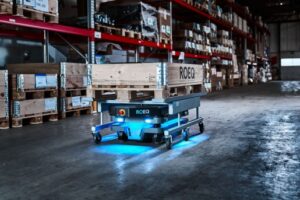

Carts & Racks

Mounting ROEQ Carts/Racks to the top of your AMR Robots helps to maximise the internal transport of pallets, skids and boxes.

ROEQ Carts/Racks Modules Available:

• S-Cart300
• S-Cart300W
• S-Cart300L
• S-Cart300 Ext
• S-Cart500W
• S-Cart500 Ext
• S-Cart1500W

Cart/Rack Modules

Use ROEQ Top Modules with Carts/ Racks to transport heavy loads.

ROEQ Carts/Racks Modules Available:

• MiR Shelf Carrier 250 TM
• TMS-C300Ext
• TMS-C1500 – when combined with the ROEQ S-Cart1500W, this top module can transport up to 800kg with the MiR600, and up to 1500kg with the MiR1350.

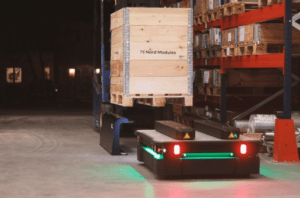

Lifter Modules

When an AMR Robot fitted with a lifter module arrives at a ROEQ docking station, the lifting mechanism enables the loading and unloading of goods, for example to an assembly line.

ROEQ Lifter Modules Available:

• TML200
• TML1200

Docking Stations

ROEQ’s Robot Docking Stations are the perfect solution for precise docking of ±1mm.

Wall mounted, the ROEQ’s Docking Stations take up less space, are flexible and easily moved around your factory floor.

Also available, the Easy-Pull-Out range is suited to collaborative set-ups where staff handle the carts manually.

ROEQ Docking Stations Available:

• DS100/200P Floor
• DS100/200P Ext Floor
• DS100/200P Wall
• DS100/200PE Floor
• DS100/200PE Ext Floor
• DS100/200PE Wall

Top Module Accessories

A range of accessories are also available for use with the ROEQ’s Top Module range.

• AM250
• Guardcom system
• Cart Rails
• TML200 forks
• Extra lock Cart (300P & 300E)
• Side bars
• Reflector

GuardCom System

The ROEQ GuardCom System utilises robust sensor-based technology in a revolutionary new way that enables your MiR robot to transfer goods securely and reliably between mobile robots and stationary conveyor stations.

Unlike most robotic conveyor transport solutions on the market today that rely on unstable Wi-Fi connections, GuardCom connects directly to your ROEQ top roller and to the stationary conveyor station.

Benefits of the AMR Robot GuardCom System:

• Reliable – not dependent on WIFI
• Safe exchange of goods
• Physical guard as an added safety feature to safeguard goods from rolling off or dangling from the conveyors
• Short cycle time for tasks
• Easy to set up
• Install directly on conveyors
• Compatible with all MiR platforms
• Compatible with all ROEQ top rollers and all stationary conveyor stations
• Low cost of ownership
